Product Characteristicsl Support EPC C1Gen2 V2.0及EPC C1Gen2 V1.2；
l Support ISO18000-6C；
l supportISO18000-6B；
l Support GB 29768；
l Support GJB 7377.1（on limited condition）；
l Max output power is 33dBm，max read range is up to 25meter ；
l Max tag reading speed is 1000pcs/second；
l Support 4 RP-TNC female antenna ports；
l Support temperature protection，automatically stop working when the temperature exceed 85 degrees Celsius . And restart work when the temperature is below 85 degrees Celsius；
l Support antenna failure detection；
l Support FastID、Tagfocus、QT、QTWrite、QTRead、BlockWrite、BlockErase、BlockPermalock etc；
l Support Ultra-fast label writing mode, writing 12 bytes EPC within 50ms；
l Support Network port、RS232、USB、RS485/GPIO etc
l Support POE、4G、WIFI option
Technical Specification|
Item |
Technical data |
Remark |
|
Peak Current |
800 |
Max power output@12V |
|
Frequency range |
840～960MHZ |
|
|
Default working frequency |
Hopping Frequency |
Frequency interval 250KHz |
|
Frequency hopping speed |
≤2 |
|
|
Fixed power |
33 |
|
|
Stepping interval |
1 |
0~33dBm adjustable by software |
|
Multi-tags |
1000个 |
|
|
Radio-frequency power rising time |
≤500 |
|
|
Radio-frequency power dropping time |
≤500 |
|
|
Adjacent channel power leaking ratio
|
≤-40 |
±1CH |
|
Frequency stabilizing ratio |
±10 |
-25℃～+40℃ |
|
Max reading range |
>25m
|
9dBi rfid antenna |
Appearance and Size
l Size：212.4×180×45mm
l Weight：1280g
Environment
|
Item |
Technical data |
Remark |
|
Work TEMP |
-20℃～+70℃ |
|
|
Storage TEMP |
-40℃～+85℃ |
|
|
Relative Humidity |
10%RH～90%RH |
|

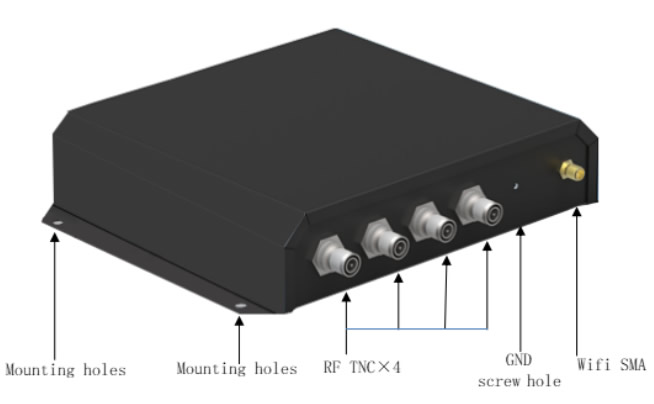

RP-TNC female
3.81terminal Interface definition
|
PIN |
Interface Name |
Signal direction |
remark |
|
1 |
GND |
|
|
|
2 |
12V |
output |
|
|
3 |
RL+ |
|
Relay positive |
|
4 |
RL- |
|
Relay Negatiuve |
|
5 |
IO1 |
output |
5V output，optical coupler isolation，weigand configurable |
|
6 |
IO2 |
output |
5V output，optical coupler isolation，weigand configurable |
|
7 |
IO3 |
output |
5V output，optical coupler isolation |
|
8 |
IO4 |
output |
5V output，optical coupler isolation |
|
9 |
IOA |
output |
12V output，100mA |
|
10 |
IOC |
output |
12V output，100mA |
|
11 |
|||
|
12 |
RS485A |
|
|
|
13 |
RS485B |
|
|
|
14 |
NC |
|
|
|
15 |
IO5 |
Input |
optical coupler isolation，PNP，3-5V |
|
16 |
IO6 |
Input |
optical coupler isolation，NPN |
|
17 |
IO7 |
Input |
optical coupler isolation，PNP，3-5V |
|
18 |
IO8 |
Input |
optical coupler isolation，NPN |
|
19 |
IOB |
output |
12V output，100mA |
|
20 |
IOD |
output |
12V output，100mA |
